ADINOX M410
Available sizes
50 ml
Dual cartridge 10:1
490 ml
Dual cartridge 10:1

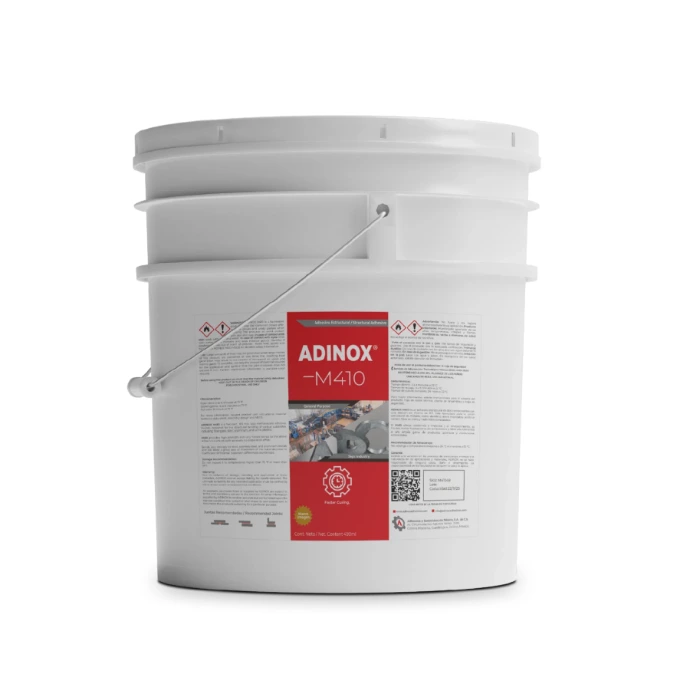

5 gal
Pail
About ADINOX M410 Low Odor Methacrylate Adhesive
ADINOX® M410 is a low odor methacrylate adhesive — a two-component, toughened structural adhesive with a 10:1 mix ratio, formulated for reliable bonding of metals, thermosets and thermoplastics across industrial and automotive applications.
Its balanced combination of high impact resistance, cohesive toughness and exceptional adhesion delivers joints that withstand dynamic loading, vibration and thermal cycling. The thixotropic, white-pigmented formulation of this low odor methacrylate adhesive fills gaps up to 0.47 in without sagging and develops handling strength within minutes at room temperature — enabling efficient assembly without extensive surface preparation.
High Gap Fill Structural Adhesive - Fast 10:1 System
- Gap filling up to 0.47 in - the high gap fill structural adhesive for irregular joints
- Fast 2 - 4 minute open time - working time 6 - 8 minutes
- 10:1 mix ratio by volume (8.8:1 by weight) - room temperature cure in 24 hours
- Thixotropic, non-sagging - will not run on vertical surfaces
White Methacrylate Adhesive - Toughened Performance
- White-pigmented mixed and cured color - clean finish on light substrates
- Tensile strength: 1,850 - 2,450 PSI (ASTM D 638) - elongation 62 - 78%
- Impact resistance >22 ft·lb/in (ASTM D 256) - absorbs vibration and dynamic loads
- Lap shear >2,611 PSI on stainless steel - cohesive failure
- Retains >2,300 PSI after 30-day immersion in gasoline, xylene and hot water
Low Odor - Non-Flame Propagating
- Low odor, low shrinkage formulation for precision and enclosed assembly environments
- Non-flame propagating - formulated for electrical and electronic assemblies with thermal safety requirements
- Ideal for electronic enclosures, computer and server assemblies and automotive modules
- The low odor methacrylate adhesive of choice for enclosed workspaces
Technical Information
Uncured Product Properties
Appearance - Resin A / Activator B | White / Beige |
Viscosity A (77°F) | 162,000 - 195,000 cP |
Viscosity B (77°F) | 62,000 - 78,000 cP |
Density A / B / Mixed | 7.8 / 8.9 / 8.1 lbs/gal |
Mix ratio (volume / weight) | 10:1 / 8.8:1 |
Flash Point (TCC) | 51°F |
Mixed / cured color | White |
Cured Product Properties
Open time / Working time | 2 - 4 min / 6 - 8 min |
Full cure | 24 hours @ 77°F |
Gap filling | Up to 0.47 in |
Hardness Shore D (ASTM D 2240) | 64 - 66 |
Elongation (ASTM D 638) | 62 - 78% |
Tensile modulus (ASTM D 638) | 72,000 - 88,000 PSI |
Tensile strength (ASTM D 638) | 1,850 - 2,450 PSI |
Impact resistance (ASTM D 256) | >22 ft·lb/in |
Service temperature | -40 to 250°F |
Lap Shear Strength by Substrate (ASTM D 1002)
Substrate | Strength | Failure Mode |
Stainless steel / stainless steel | >2,611 PSI | Cohesive failure |
Aluminum / aluminum | >2,321 PSI | Cohesive failure |
ABS / ABS | >900 PSI | Substrate failure |
FRP / FRP | >870 PSI | Fiber tear |
Aluminum / ABS | >1,740 PSI | Substrate failure |
Environmental Aging - SS/SS (ASTM D 1002)
Initial | >2,611 PSI - cohesive failure |
After 30-day cycle | >2,500 PSI - cohesive failure |
Cycle: 8 h at -22°F / 8 h at 185°F / 8 h at 86°F at 100% relative humidity.
Chemical Resistance - Al/Al, 30-Day Immersion (ASTM D 1002)
Medium | Retained Strength |
Gasoline | >2,321 PSI |
Acetic acid 10% | >2,350 PSI |
Xylene | >2,350 PSI |
Lubricating oil HD-30 | >2,321 PSI |
Kerosene | >2,300 PSI |
Water at 73°F | >2,321 PSI |
Water at 194°F | >2,350 PSI |
How to Use ADINOX M410?
Surface Preparation
- Wear gloves and protective eyewear - work in a well-ventilated area
- Surfaces must be clean, dry and free of dust, grease and oil
- Degrease with ADINOX® DS 400 - clean mechanically or chemically if needed, then dry completely
Prepare the Adhesive
- Purge a small amount of each component without the mixing nozzle
- Attach the 10:1 mixing nozzle securely and insert the cartridge into the application gun
- Purge again with the nozzle installed, then apply a continuous, uniform bead without stopping
Bond and Cure
- Join parts within the 2 - 4 min open time - apply constant, uniform pressure
- After the 6 - 8 min working time (~70% cure), do not move the parts
- Full cure in 24 h at 77°F - remove the nozzle and clean the cartridge outlet horizontally
Get the ADINOX M410 low odor methacrylate adhesive through our authorized distributor network, in two dual-cartridge sizes and 5 gal pails.
Join our distributor network and offer your customers low odor, low bloom instant adhesive solutions for cleanroom and precision assembly environments.
Contact usBecome a Partner
Where to Buy?
If you are using ADINOX M410, you may be interested in

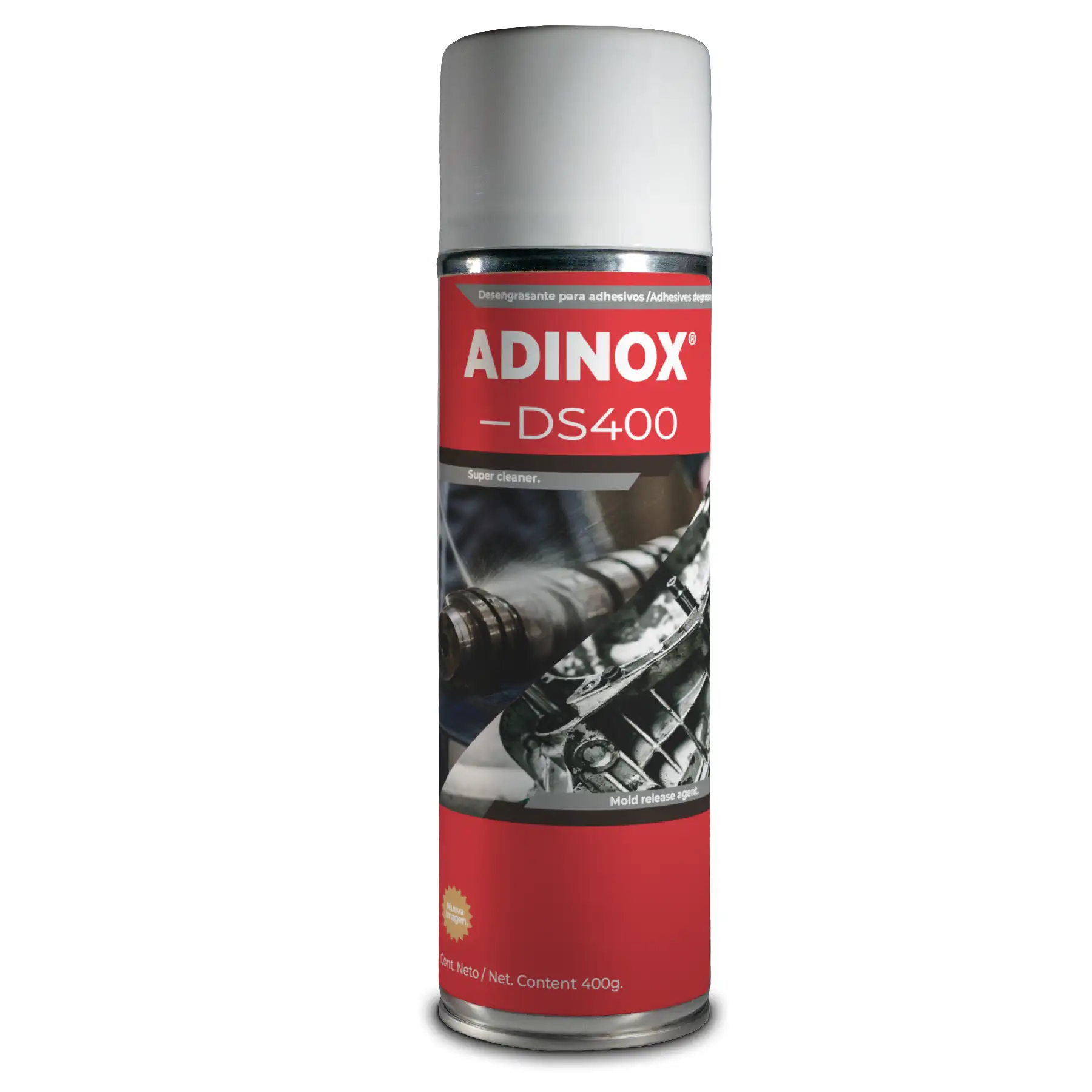

ADINOX® DS 400
