ADINOX M460
Available sizes
50 ml
Dual cartridge 10:1
490 ml
Dual cartridge 10:1

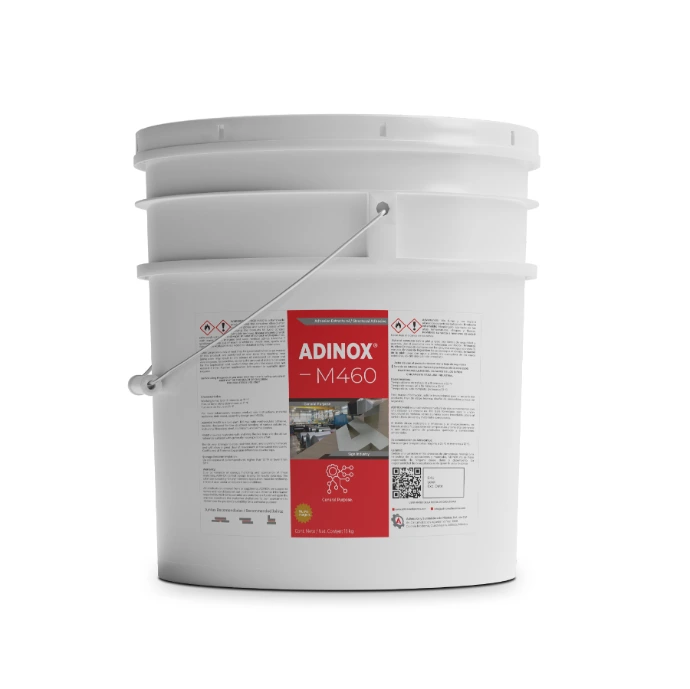

5 gal
Pail
About ADINOX M460 Slow Cure Methacrylate Adhesive
ADINOX® M460 is a slow cure methacrylate adhesive — a two-component, toughened structural adhesive formulated for bonding a wide range of metals, thermosets, thermoplastics and composite materials.
Its extended open time of 12 - 18 minutes allows precise part positioning in complex assemblies, while delivering full structural strength with excellent impact, fatigue and thermal cycling performance. The thixotropic, black-pigmented formulation of this slow cure methacrylate adhesive resists sagging and cures at room temperature without extensive surface preparation — particularly well-suited for manufacturing processes that require extended adjustment times.
Black Methacrylate Adhesive - Gap Filling
- Black methacrylate adhesive for industrial bond lines - thixotropic, sag-resistant
- Gap filling up to 0.31 in for irregular joints and oversized bond lines
- 10:1 mix ratio by volume (9:1 by weight) - little or no surface preparation on metallic substrates
- Demonstrated chemical resistance to fuels, solvents, lubricants and aqueous media
Toughened Structural Performance
- Tensile strength: 3,191 - 3,481 PSI (ASTM D 638) - elongation 50%
- Lap shear of 3,100 PSI on stainless steel and 2,910 PSI on aluminum - cohesive failure
- Impact resistance 21 ft·lb/in - cleavage peel >23 pli initial / >17 pli average (ASTM D 3807)
- Retains over 2,900 PSI after 30-day chemical immersion and 3,200 PSI after the 30-day environmental cycle
Long Open Time Structural Adhesive - Precise Positioning
- Open time of 12 - 18 minutes - working time of 40 - 55 minutes, the longest of the ADINOX Serie M line
- The long open time structural adhesive for complex large-format assemblies requiring precise positioning
- Suited for aerospace composite panels and multi-component industrial equipment where extended alignment time is essential
- Full cure in 24 hours at 77°F - room temperature, no ovens or fixtures
Technical Information
Uncured Product Properties
Appearance - Resin A / Activator B | White / Black |
Viscosity A (77°F) | 103,000 - 122,000 cP |
Viscosity B (77°F) | 52,000 - 68,000 cP |
Density A / B / Mixed | 8.0 / 8.9 / 8.1 lbs/gal |
Mix ratio (volume / weight) | 10:1 / 9:1 |
Flash Point (TCC) | 51°F |
Mixed / cured color | Black |
Cured Product Properties
Open time / Working time | 12 - 18 min / 40 - 55 min |
Full cure | 24 hours @ 77°F |
Gap filling | Up to 0.31 in |
Hardness Shore D (ASTM D 2240) | 73 - 75 |
Elongation (ASTM D 638) | 50% |
Tensile modulus (ASTM D 638) | 77,000 - 98,000 PSI |
Tensile strength (ASTM D 638) | 3,191 - 3,481 PSI |
Impact resistance | 21 ft·lb/in |
Service temperature | -40 to 250°F |
Lap Shear Strength by Substrate (ASTM D 1002)
Substrate | Strength | Failure Mode |
Stainless steel / stainless steel | >3,191 PSI | Cohesive failure |
Aluminum / aluminum | >3,191 PSI | Cohesive failure |
ABS / ABS | >1,160 PSI | Substrate failure |
FRP / FRP | >1,450 PSI | Fiber tear |
Aluminum / ABS | >2,031 PSI | Substrate failure |
Temperature Resistance - SS/SS (ASTM D 1002)
Temperature | Strength |
-40°F | >5,400 PSI |
-4°F | >2,900 PSI |
77°F | >2,800 PSI |
185°F | >1,900 PSI |
250°F | >1,450 PSI |
Cleavage Peel Strength - SS/SS (ASTM D 3807)
Initial peel strength | >23 pli |
Average peel strength | >17 pli |
Environmental Aging - SS/SS (ASTM D 1002)
Initial | 3,180 PSI - cohesive failure |
After 30-day cycle | 3,200 PSI - cohesive failure |
Cycle: 8 h at -22°F / 8 h at 185°F / 8 h at 86°F at 100% relative humidity. Lap shear strength increases after environmental testing.
Chemical Resistance - Al/Al, 30-Day Immersion (ASTM D 1002)
Medium | Retained Strength |
Gasoline | 3,180 PSI |
Acetic acid 10% | 3,120 PSI |
Xylene | 3,150 PSI |
Lubricating oil HD-30 | 3,240 PSI |
Kerosene | 2,950 PSI |
Water at 73°F | 3,100 PSI |
Water at 194°F | 3,000 PSI |
How to Use ADINOX M460?
Surface Preparation
- Wear gloves and protective eyewear - work in a well-ventilated area
- Surfaces must be clean, dry and free of grease, oil and contaminants - degrease with ADINOX® DS 400
- Little or no surface preparation is required on metallic substrates
Prepare the Adhesive
- Purge the cartridge before installing the 10:1 static mixing nozzle
- Discard the initial mixed material in the nozzle to ensure the proper mix ratio
- Apply a continuous, uniform bead without stopping to prevent bubbles or incomplete mixing
Bond and Cure
- Position and align parts within the 12 - 18 min open time - ideal for complex, large-format assemblies
- Immobilize the parts during the 40 - 55 min working time - do not move until handling strength is reached
- Full cure in 24 h at 77°F - remove the nozzle and clean the cartridge outlet horizontally
Get the ADINOX M460 slow cure methacrylate adhesive through our authorized distributor network, in two dual-cartridge sizes and 5 gal pails.
Join our distributor network and offer your customers the slow cure methacrylate adhesive for large-format, precision-positioned bonding programs.
Contact usBecome a Partner
Where to Buy?
If you are using ADINOX M460, you may be interested in

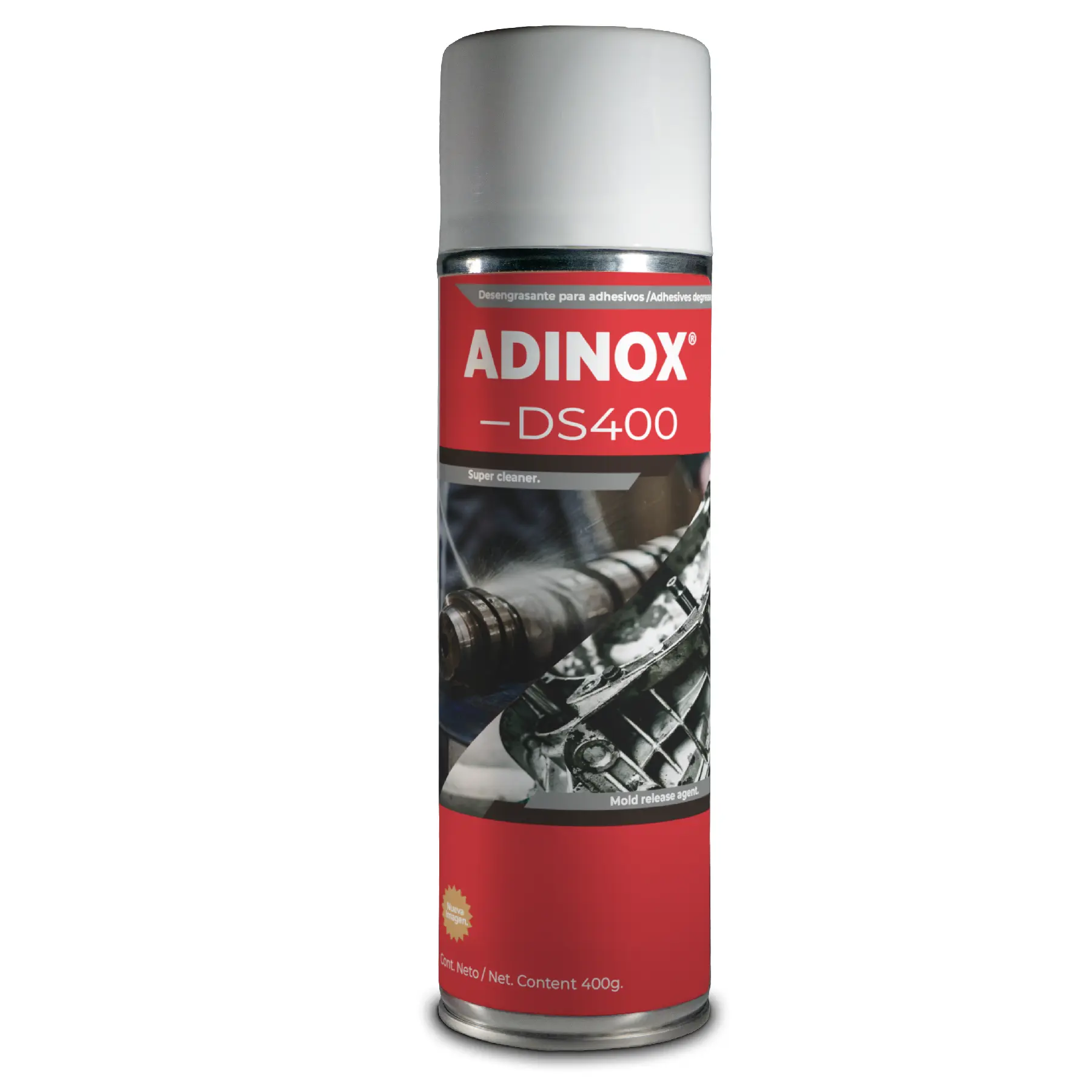

ADINOX® DS 400
Industrial Degreaser
Cleans and degreases substrates before bonding. Recommended surface preparation for M460.

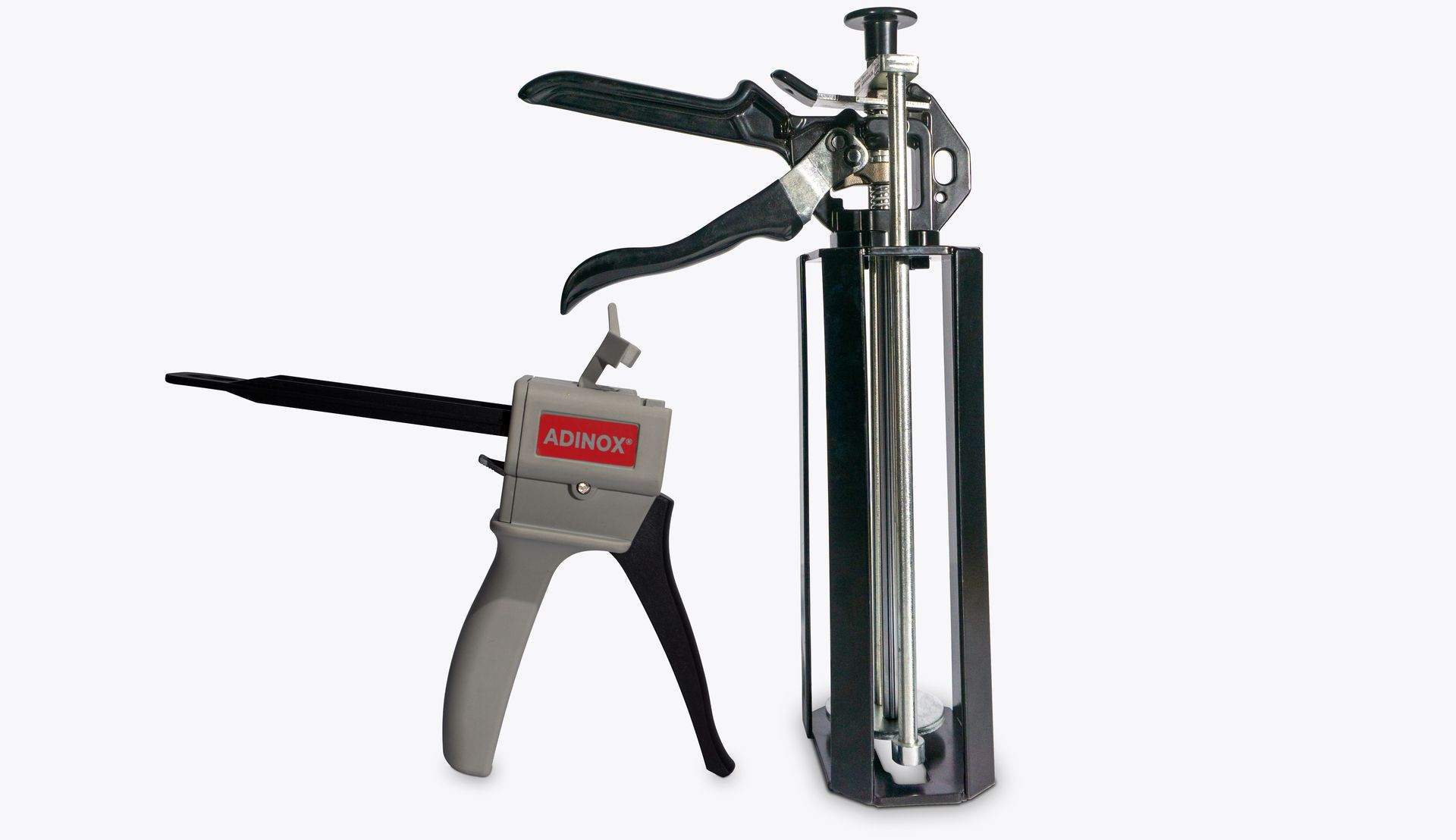

Caulking Guns
10:1 Dispensing Equipment
Manual and pneumatic guns for 10:1 dual cartridges. Required for M460 application.
Mixing Nozzles
Static Mixers 10:1
Ensure a homogeneous 10:1 mix of both components. Essential companion for M460.
Frequently Asked Questions
What is the ADINOX M460 slow cure methacrylate adhesive?
ADINOX M460 is a slow cure methacrylate adhesive: a two-component, toughened structural adhesive whose extended open time allows precise part positioning in complex assemblies of metals, thermosets, thermoplastics and composites.
How long is the open time of M460?
As a long open time structural adhesive, M460 offers 12-18 minutes of open time and 40-55 minutes of working time — the longest of the ADINOX Serie M line — ideal for large-format assemblies requiring extended alignment.
What is the mix ratio of M460?
M460 uses a 10:1 mix ratio by volume (9:1 by weight), dispensed through a static mixing nozzle from a dual cartridge, with full cure in 24 hours at 77°F.
How strong is M460?
This slow cure methacrylate adhesive delivers tensile strength of 3,191-3,481 PSI (ASTM D 638), lap shear of 3,100 PSI on stainless steel with cohesive failure, 50% elongation and cleavage peel above 23 pli initial.
What gap can M460 fill?
M460 fills gaps up to 0.31 in without sagging thanks to its thixotropic formulation — suitable for irregular joints and oversized bond lines.
Which substrates does M460 bond?
It bonds stainless steel, aluminum (1000-6000 and anodized), carbon steel, ABS, nylon, PBT, PPO, PVC, PMMA, PET, polycarbonate, fiberglass (FRP), carbon fiber, Kevlar, wood and porcelain. It is not suitable for PE/PP, PTFE, silicone, aluminum 7000, galvanized steel, copper, bronze or brass.
Is M460 resistant to chemicals and weathering?
Yes. After 30-day immersion (ASTM D 1002, Al/Al), M460 retains over 2,900 PSI against gasoline, xylene, 10% acetic acid, HD-30 oil, kerosene and hot water, and keeps 3,200 PSI after the 30-day environmental cycle.
Why is M460 black?
M460 is a black methacrylate adhesive oriented to industrial bond lines. Being black, it carries no UV-yellowing limitation.
What is the service temperature range?
This slow cure methacrylate adhesive performs from -40 to 250°F when cured, retaining cohesive failure across the range.
