ADINOX M480
Available sizes
50 ml
Dual cartridge 10:1
400 ml
Dual cartridge 10:1
5 gal
Pail
About ADINOX M480 High Temperature Methacrylate Adhesive
ADINOX® M480 is a high temperature methacrylate adhesive — a two-component (10:1), toughened structural adhesive formulated for high-performance bonding of metals — including galvanized steel — thermosets, thermoplastics and composite materials.
It provides outstanding resistance to electrostatic powder coating bake temperatures up to 392°F for 60 minutes, with a continuous service range of -40 to 250°F. The thixotropic consistency and gap filling capacity up to 0.24 in of this high temperature methacrylate adhesive enable efficient, reliable assemblies in automotive OEM paint lines and baked-finish appliances.
Toughened 10:1 System - Black, Non-Sagging
- Versatile high temperature MMA adhesive with a 10:1 mix ratio by volume (9:1 by weight)
- Tensile strength 3,481 PSI (ASTM D 638) - impact resistance 21 ft·lb/in (ASTM D 256)
- Gap filling up to 0.24 in for irregular joints, with no sagging
- Open time 2 - 4 minutes - handling strength in 10 - 15 minutes - full cure in 24 hours at 77°F
Primer-Free Adhesion - Galvanized Steel Compatible
- Structural adhesion without primer to metals including galvanized steel, stainless steel and aluminum
- Lap shear >2,611 PSI on galvanized steel (G70) - the zinc coating yields before the adhesive
- Galvanized compatibility evaluated on G60, G70 and G90 grades
- Lap shear >3,191 PSI on aluminum and >2,901 PSI on stainless steel - cohesive failure
Heat Resistant Structural Adhesive - Powder Coating Ready
- Withstands electrostatic powder coating bake cycles up to 392°F for 60 minutes
- The heat resistant structural adhesive for automotive OEM lines with electrostatic paint processes
- Suited for appliances with baked enamel finishes - bond before painting, bake with the part
- Continuous service temperature: -40 to 250°F
Technical Information
Uncured Product Properties
Appearance - Resin A / Activator B | White / Black |
Viscosity A (77°F) | 170,000 - 310,000 cP |
Viscosity B (77°F) | 90,000 - 170,000 cP |
Density A / B / Mixed | ~7.8 / ~8.7 / ~7.9 lbs/gal |
Mix ratio (volume / weight) | 10:1 / 9:1 |
Flash Point (TCC) | 52°F |
Mixed / cured color | Black |
Cured Product Properties
Open time / Working time | 2 - 4 min / 10 - 15 min |
Full cure | 24 hours @ 77°F |
Gap filling | Up to 0.24 in |
Hardness Shore D (ASTM D 2240) | 68 - 72 |
Elongation (ASTM D 638) | 25 - 30% |
Tensile modulus (ASTM D 638) | 130,500 - 188,500 PSI |
Tensile strength (ASTM D 638) | 3,481 PSI |
Impact resistance (ASTM D 256) | 21 ft·lb/in |
Service temperature | -40 to 250°F |
Electrostatic powder coating resistance | Up to 392°F for 60 min |
Recommended application temperature | 65 - 85°F |
Lap Shear Strength by Substrate (ASTM D 1002)
Substrate | Strength | Failure Mode |
Stainless steel / stainless steel | >2,901 PSI | Cohesive failure |
Aluminum / aluminum | >3,191 PSI | Cohesive failure |
Galvanized steel (G70) / galvanized steel (G70) | >2,611 PSI | Substrate failure |
FRP / FRP | >1,595 PSI | Fiber tear |
Aluminum / ABS | >2,031 PSI | Substrate failure |
Cleavage Peel Strength - SS/SS (ASTM D 3807)
Initial peel strength | >23 pli |
Average peel strength | >17 pli |
Environmental Aging - SS/SS (ASTM D 1002)
Initial | >3,046 PSI - cohesive failure |
After 30-day cycle | >3,046 PSI - cohesive failure |
Cycle: 8 h at -22°F / 8 h at 185°F / 8 h at 86°F at 100% relative humidity.
Lap Shear Strength by Substrate (ASTM D 1002)
Medium | Retained Strength |
Gasoline | >3,046 PSI |
Acetic acid 10% | >3,191 PSI |
Xylene | >3,046 PSI |
Lubricating oil HD-30 | >3,191 PSI |
Kerosene | >2,901 PSI |
Water at 73°F | >2,901 PSI |
Water at 194°F | >2,901 PSI |
How to Use ADINOX M480?
Surface Preparation
- Wear gloves and protective eyewear - work in a well-ventilated area
- Surfaces must be clean, dry and free of grease, oil and contaminants - degrease with ADINOX® DS 400
- Higher bond strengths are achieved on lightly sanded surfaces - most metals bond without primer
Prepare the Adhesive
- Purge the cartridge before installing the 10:1 static mixing nozzle
- Discard the initial mixed material in the nozzle to ensure the proper mix ratio
- Apply between 65°F and 85°F for optimal cure - lower temperatures slow cure, higher temperatures accelerate it
Bond and Cure
- Fill the gap completely and join parts within the 2 - 4 min open time
- Immobilize the parts during the 10 - 15 min working time - do not move until handling strength is reached
- Full cure in 24 h at 77°F - clean uncured adhesive with isopropanol, acetone or MEK; cured adhesive only by mechanical removal
Get the ADINOX M480 high temperature methacrylate adhesive through our authorized distributor network, in two dual-cartridge sizes and 5 gal pails.
Join our distributor network and offer your customers the high temperature methacrylate adhesive for OEM paint lines and baked-finish bonding programs.
Contact usBecome a Partner
Where to Buy?
If you are using ADINOX M480, you may be interested in

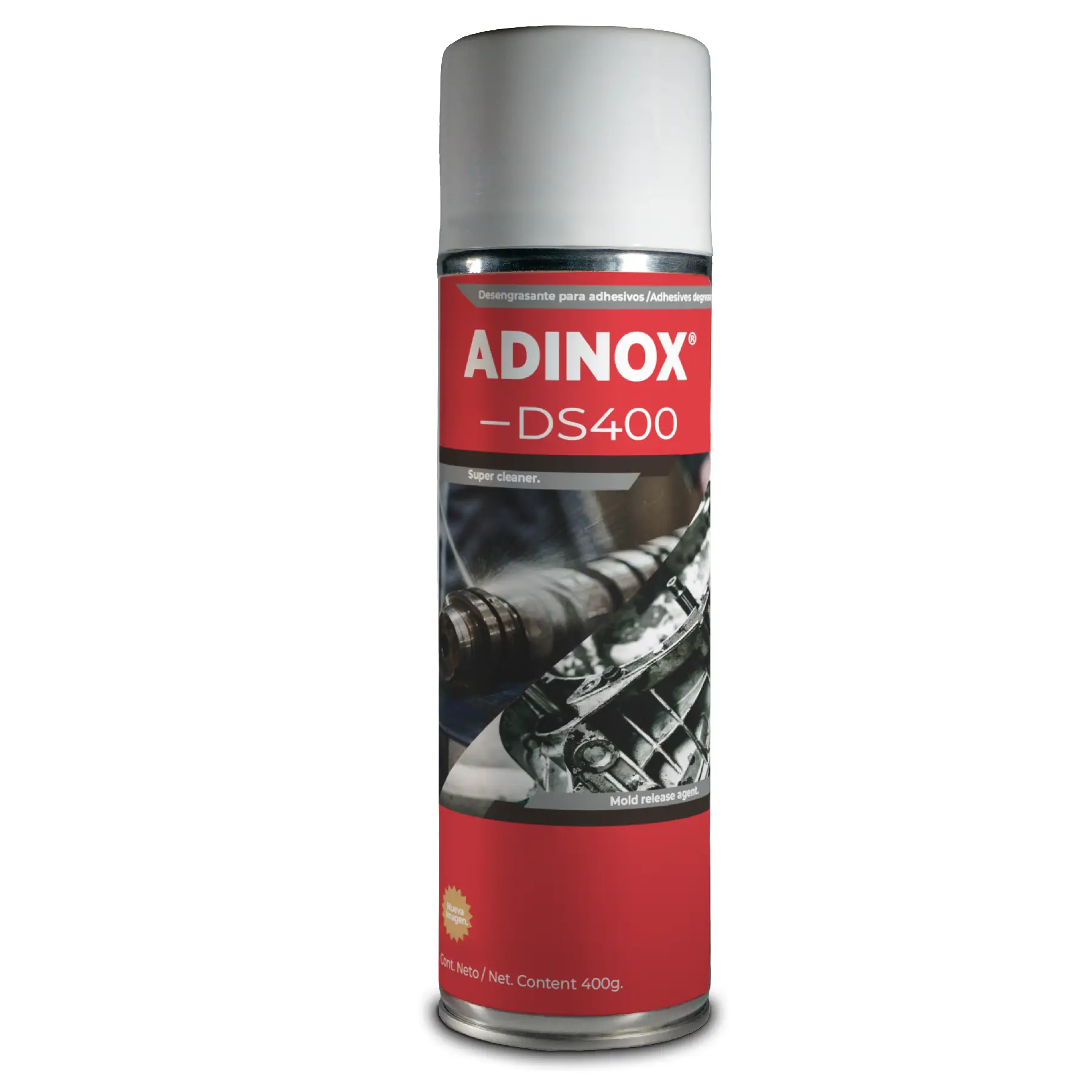

ADINOX® DS 400
Industrial Degreaser
Cleans and degreases substrates before bonding. Recommended surface preparation for M480.
Caulking Guns
10:1 Dispensing Equipment
Manual and pneumatic guns for 10:1 dual cartridges. Required for M480 application.
Mixing Nozzles
Static Mixers 10:1
Ensure a homogeneous 10:1 mix of both components. Essential companion for M480.
Frequently Asked Questions
What is the ADINOX M480 high temperature methacrylate adhesive?
ADINOX M480 is a high temperature methacrylate adhesive: a two-component (10:1) toughened structural adhesive that withstands electrostatic powder coating bake cycles up to 392°F for 60 minutes and bonds metals — including galvanized steel — plastics and composites.
Is M480 resistant to chemicals and weathering?
Yes. After 30-day immersion (ASTM D 1002, Al/Al), this high temperature methacrylate adhesive retains over 2,900 PSI against gasoline, xylene, 10% acetic acid, HD-30 oil, kerosene and hot water, and keeps over 3,046 PSI after the 30-day environmental cycle.
Which substrates does M480 bond?
It bonds stainless steel, aluminum (1000-6000 and anodized), carbon steel, galvanized steel, ABS, PMMA, nylon, PBT, PPO, PVC, PET, polycarbonate, fiberglass (FRP), carbon fiber, Kevlar, wood and ceramics. It is not suitable for PE/PP, PTFE, silicone, aluminum 7000, copper, bronze or brass.
What gap can M480 fill?
M480 fills gaps up to 0.24 in for irregular joints with no sagging, thanks to its thixotropic consistency.
How strong is M480?
This high temperature methacrylate adhesive delivers tensile strength of 3,481 PSI (ASTM D 638), lap shear above 3,191 PSI on aluminum with cohesive failure, impact resistance of 21 ft·lb/in (ASTM D 256) and cleavage peel above 23 pli initial.
What is the mix ratio of M480?
M480 is a high temperature MMA adhesive with a 10:1 mix ratio by volume (9:1 by weight), dispensed through a static mixing nozzle from a dual cartridge, with a 2-4 minute open time and handling strength in 10-15 minutes.
Does M480 need a primer on galvanized steel?
No. M480 provides structural adhesion without primer to metals including galvanized steel — evaluated on G60, G70 and G90 grades — stainless steel and aluminum, with lap shear above 2,611 PSI on galvanized steel (G70).
What is the continuous service temperature of M480?
This heat resistant structural adhesive performs continuously from -40 to 250°F. The 392°F rating applies to powder coating bake cycles of up to 60 minutes, not to continuous service.
Can M480 go through powder coating bake ovens?
Yes. M480 resists electrostatic powder coating temperatures up to 392°F for 60 minutes — bond the assembly first, then bake it with the part. It is suited for automotive OEM paint lines and appliances with baked enamel finishes.
